NYC subway elevated structure O scale / HO scale
This is a specially designed EL structure system that is adaptable for O scale and HO scale. Its super easy to assemble, as all you have to do is slide the griders into place. No cutting is needed, no premeasurements, no difficult tools and parts needed.

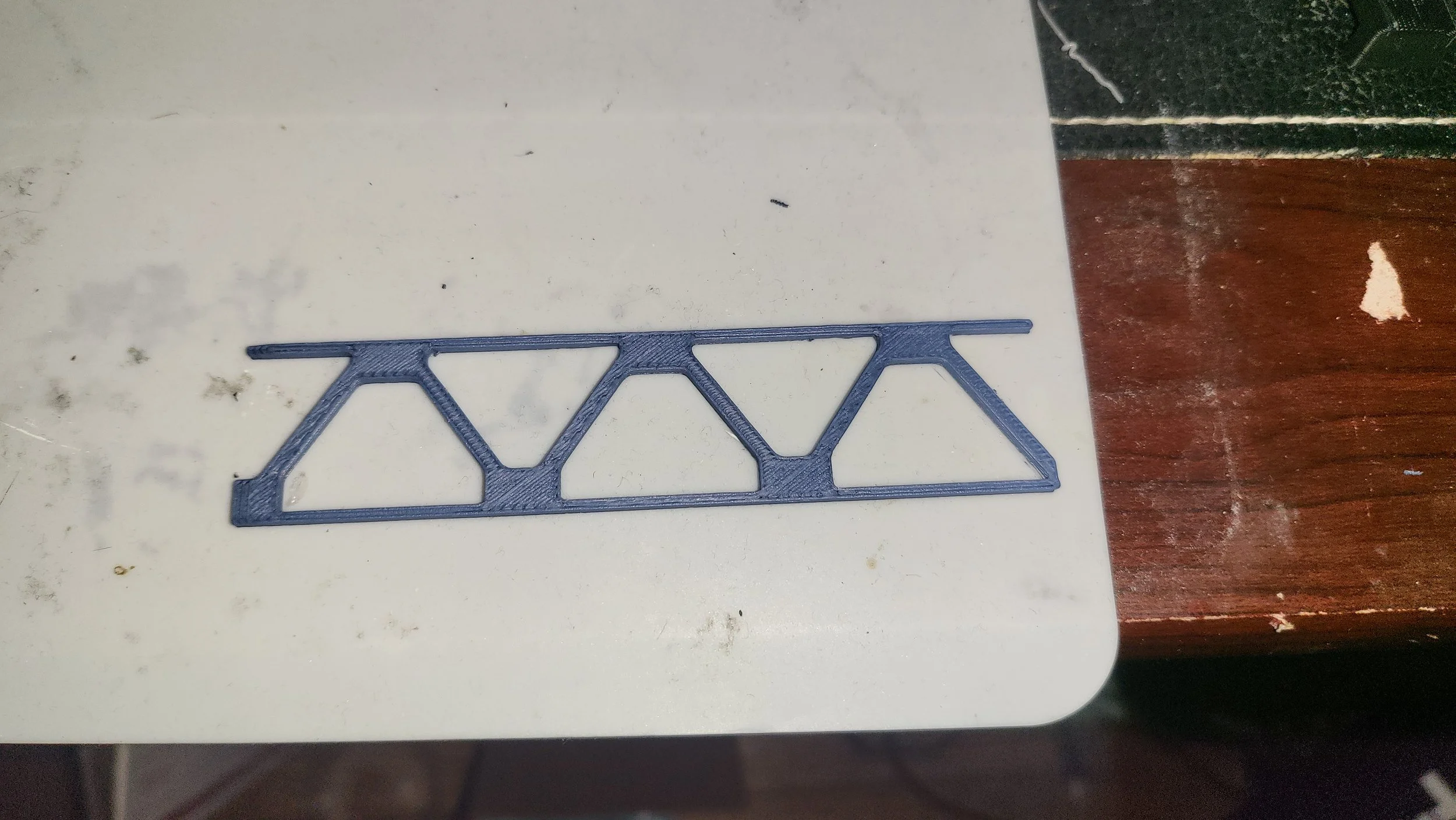

I designed this to be as simple as possible. Each section can come with the Side rib truss’s or no side rib truss’s. Every kit comes with 3 Track griders and a cross grider. The griders have nice details in them including rivets and bumps. They will all come in darkish navy blue color. If you want a custom color like Brown or green please message me 4Dsubway@gmail.com for a custom color. Custom colors can incur more fees.
If you want the structure to be primed and filled and painted with a custom color to give a rich glossy look you can purchase the painted sections, however cost is going to be alot more.
There is also a express station structure, with the cross griders being much more wider to accommodate the bigger EXP platforms. there are also griders that can be used to help the tracks transition from the normal structure to the EXP structure.
There is also a structure with local beams available to add local stations.
There is also Local and express stations available, along with a staircase structure that can reach it
The curved piece of the EL kit supports tracks for 036 (inner) 045 (Middle) and 054 (outer) some modification of track length may need to be made to fit it smoothly.
These are the measurements for the O scale structure, for HO scale reduce the measurements by 55% or multiply by .55
They all have a height of 200mm / 7.87in, From the bottom of the structure to the top
El kit one structure:
Width: 10.9in
Center to center track distance: 4.13in
Width of track grider: 1.52in, Height: .98in
Lenth of the structure assembled: 13.76in
——
El kit structure with LCL beams:
Width: 15.62in
All other measurements are the same.
—-
El kit structure EXP station
Width: 15.1in
All other measurements are the same.
—-
EL kit curved structure:
Length from Outer portion (054 side): 14.8in
Length from Inner portion (036 Side): 9.09in
036 Track grider Length: ~8.9in
045 Track grider Lenth: ~11.1in
054 Track grider Lenth: ~13.35in
___
Stations:

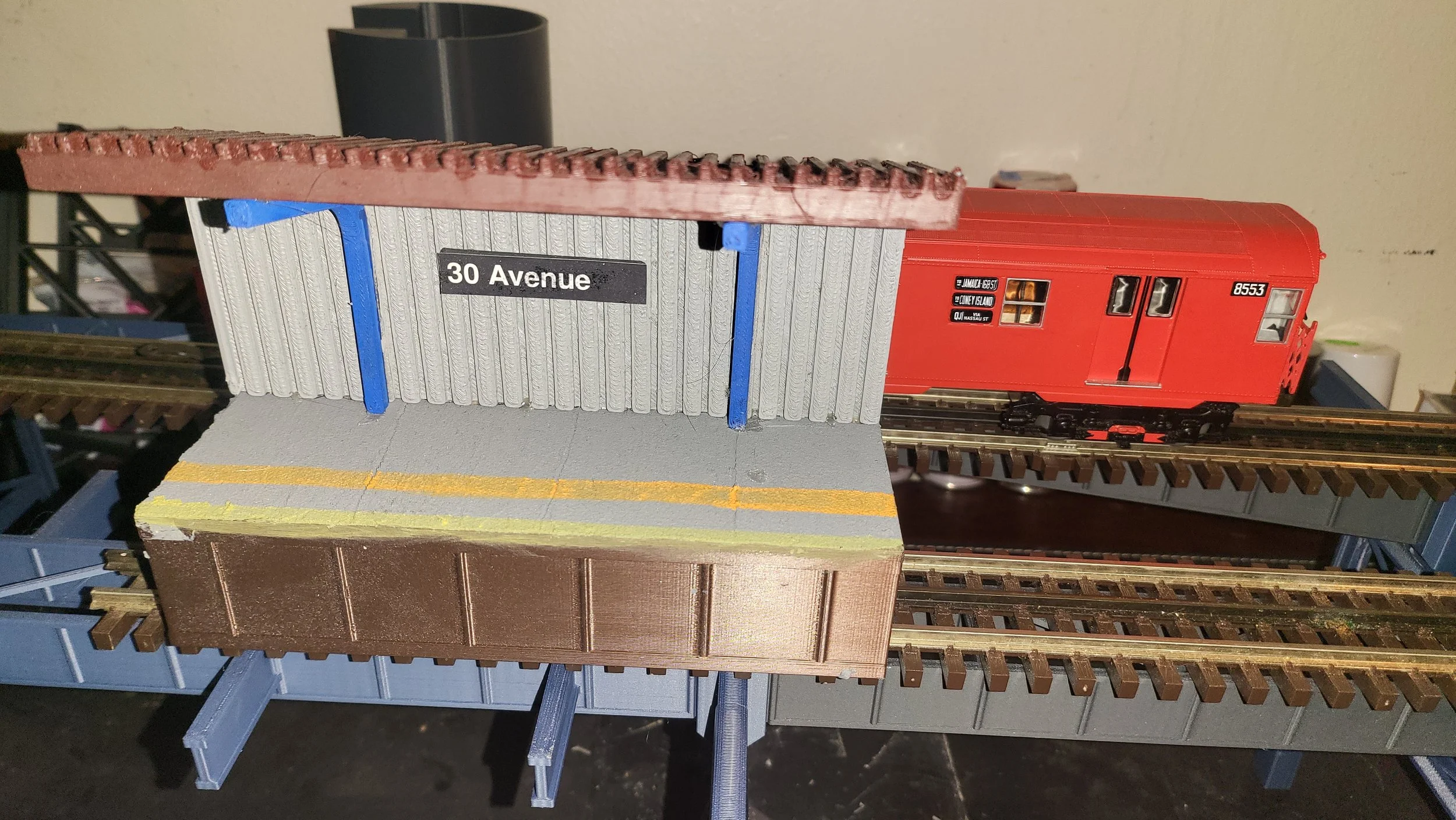

LCL station Length: 7.48in
LCL station Width: 2.5in
LCL station Height: 1.673in
—

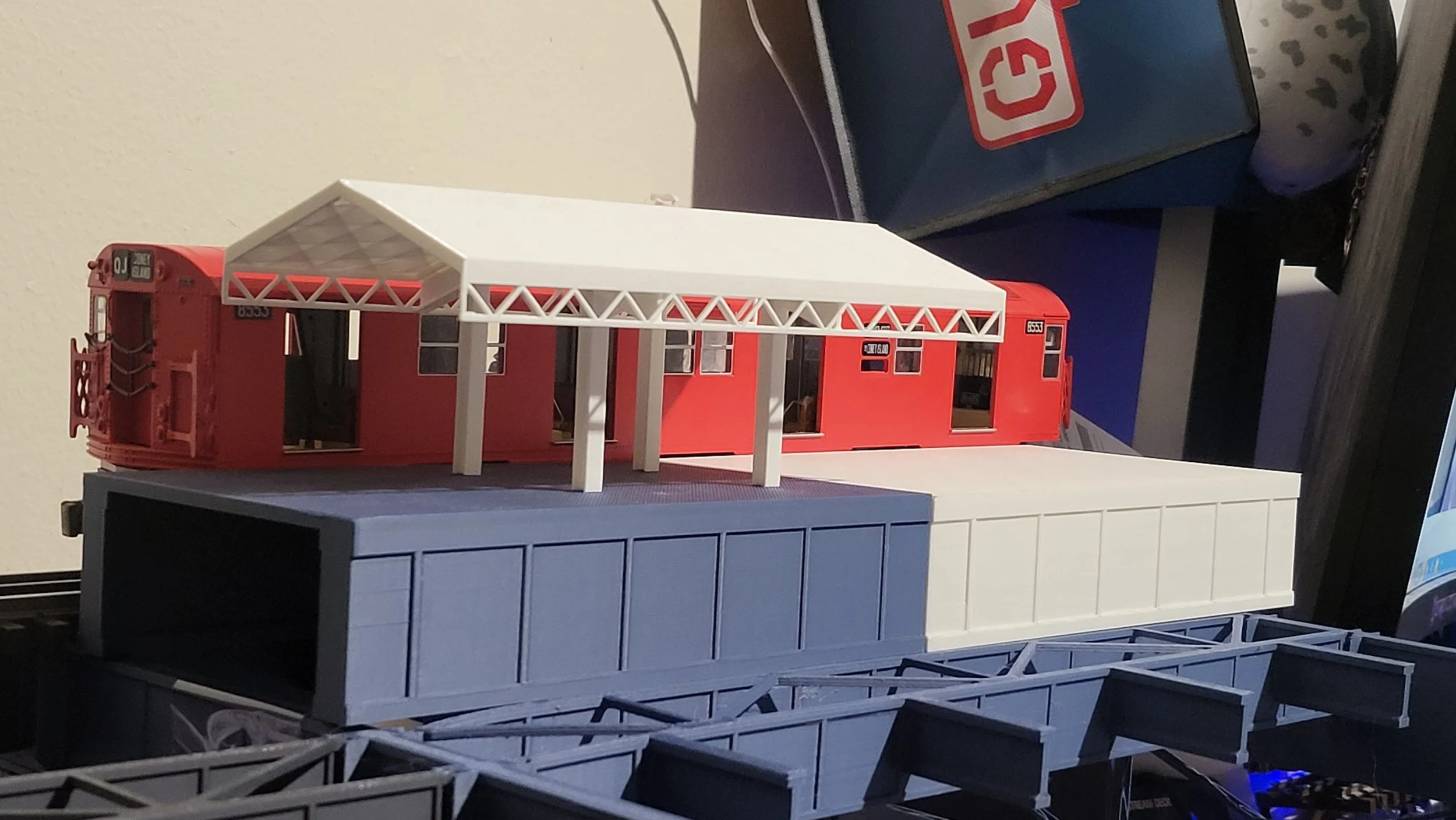

EXP station Length: 7.48in
EXP station Width: 4.27in
EXP station Height: 1.673in
—
EXP station roof width: 3.78in
EXP station roof Rib to platform reach: 1.63in (Should reach the subway car nicely with Atlas O scale track)
—
Stairs Width: 3in
Stairs height (Top to bottom): 7.8in
stairs height Roof top to bottom: 10in
